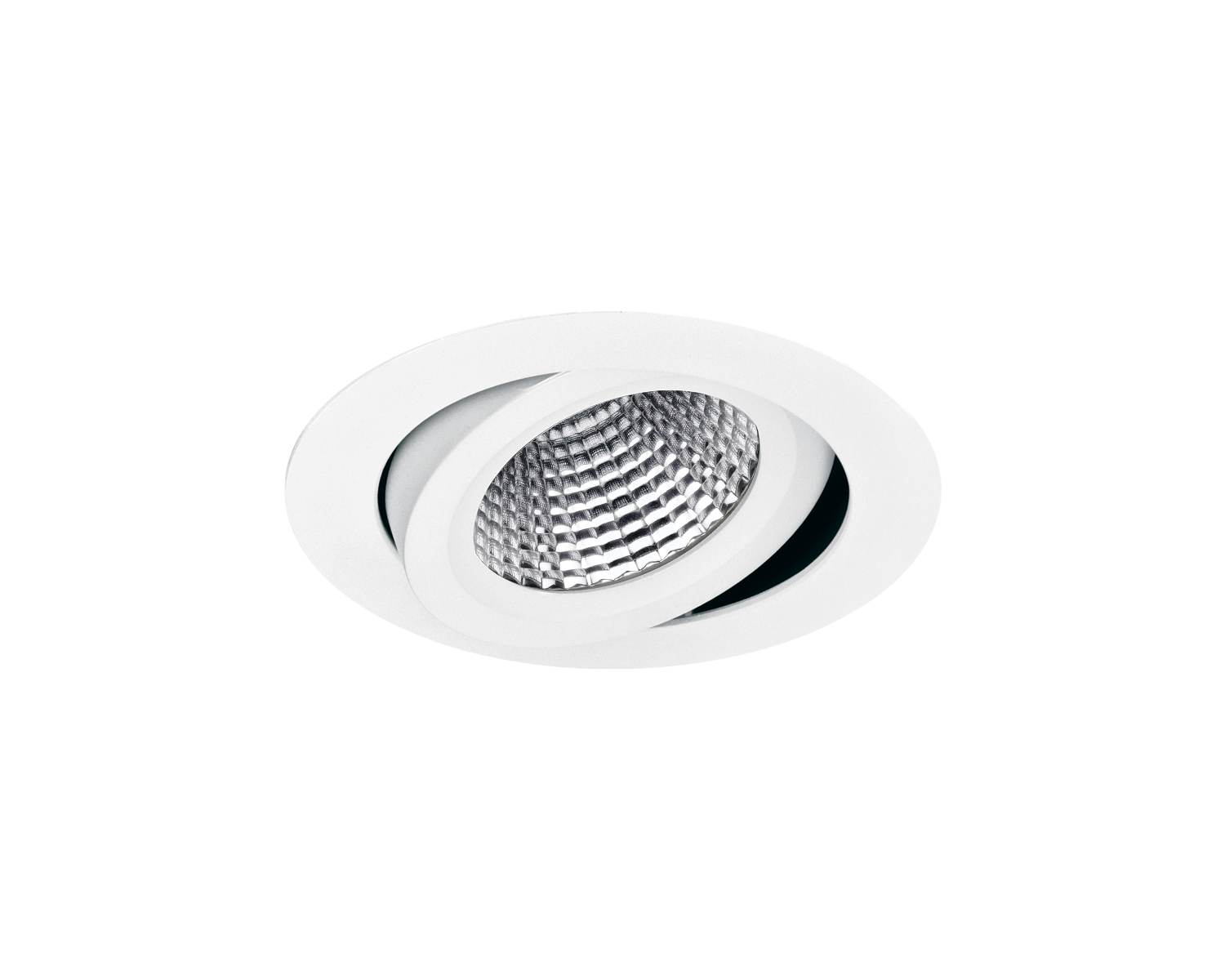

Arlo NT7

Professional, adjustable LED downlight

Product Overview

✔ Made in the UK

✔ Professional gimbal fixture

✔ Wide choice of accessories

✔ UGR <19 low glare

✔ Incorporates Tridonic LED module and driver systems

✔ Height under 102 mm using optimised passive thermodynamics

✔ Suitable for Education, Healthcare, Hospitality, Office, Retail, Commercial, Leisure

Finishes / Material
  • White (Traffic) RAL 9016
  • Black (Matt) RAL 9005
  • Body: Die Cast Aluminium
  • Reflector: Aluminium
Sizes
  • 186 (Ø) x 102 (D) mm
    Cutout: 176 mm, Weight: 0.5kg

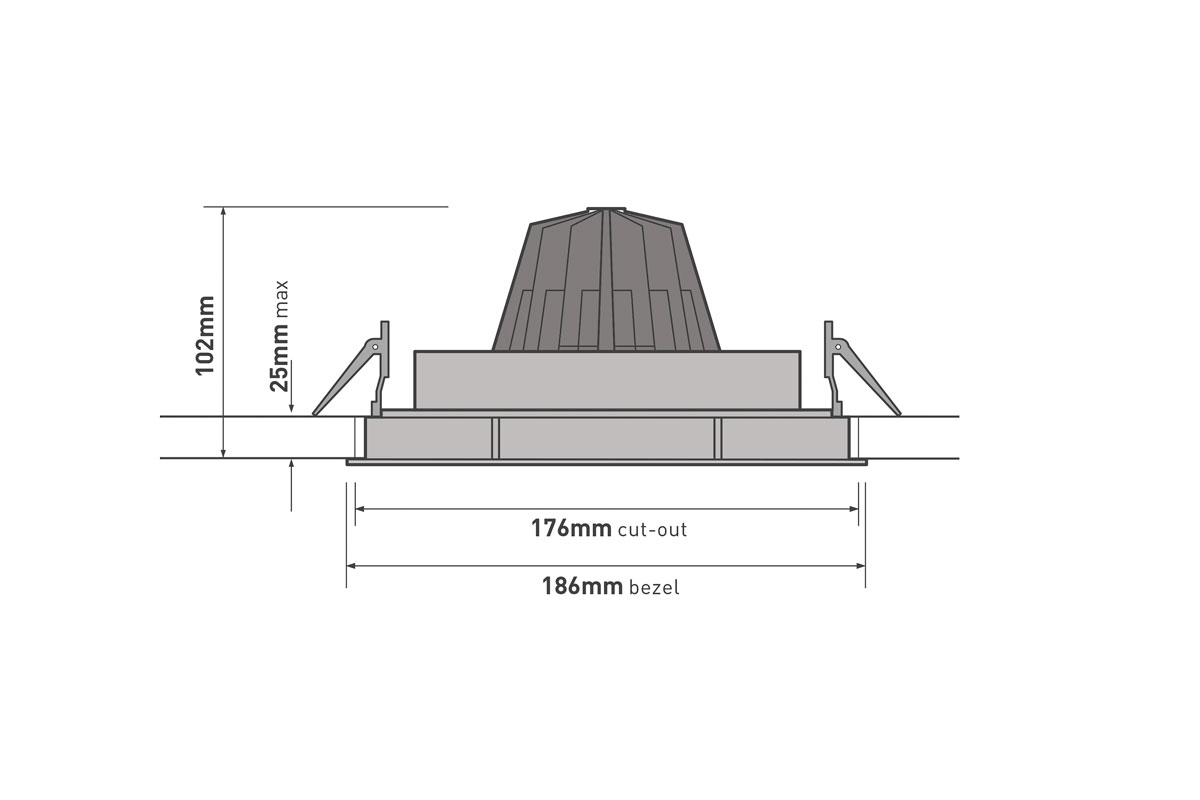

Technical Drawing
  • Source Info Tridonic LED module
  • Lumens (delivered) 1055Lm - 3252Lm
  • Circuit Watts 8cW - 28cW
  • Efficacy up to 131Lm/cW
  • MacAdams 3 SDCM
  • Colour Temperature 3000K / 4000K
  • Colour Rendering CRI80

Options.

Reflector

  • 25° Beam Angle

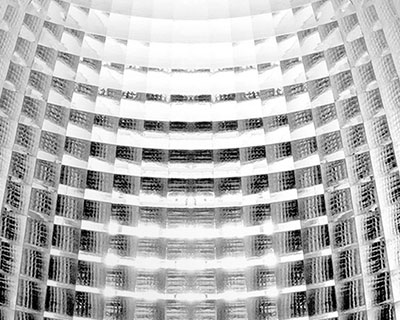

    Diamond Facet Reflector

  • Diamond Facet Reflector

    60º

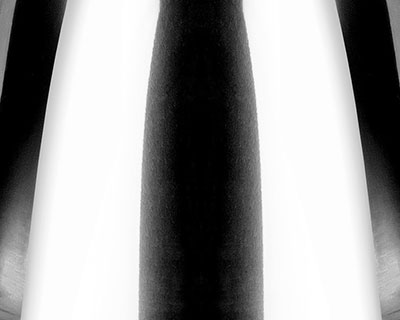

  • Specular Reflector

    40º

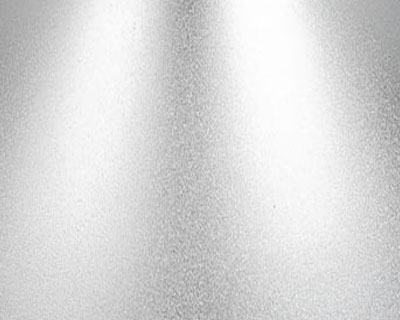

  • Etched Reflector

    50º

Attachment (optional)

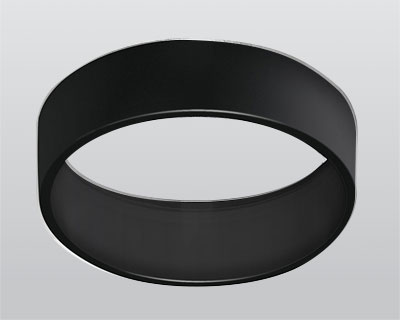

  • Deco Ring (Black)

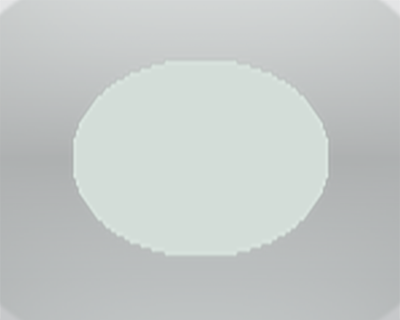

  • Centre Etched Flush Glass Cover

Additional Information.

Need Assistance? If you need help finding the perfect light for your project we can help. From product selection, price enquiry & technical support, we’ll be happy to assist. Please make contact via our contact page.

You May Also Like...

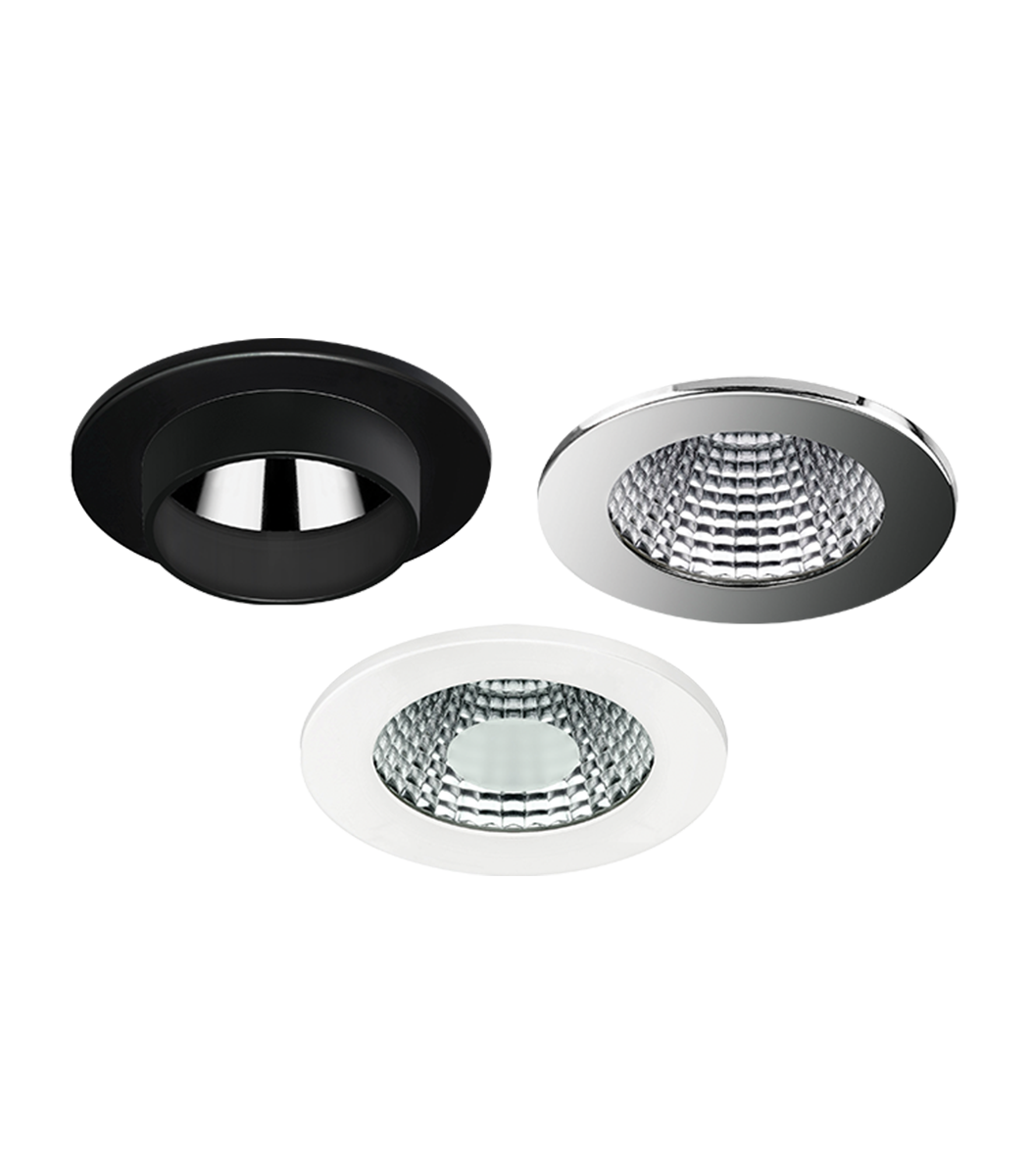

  • Arlo
    SV8

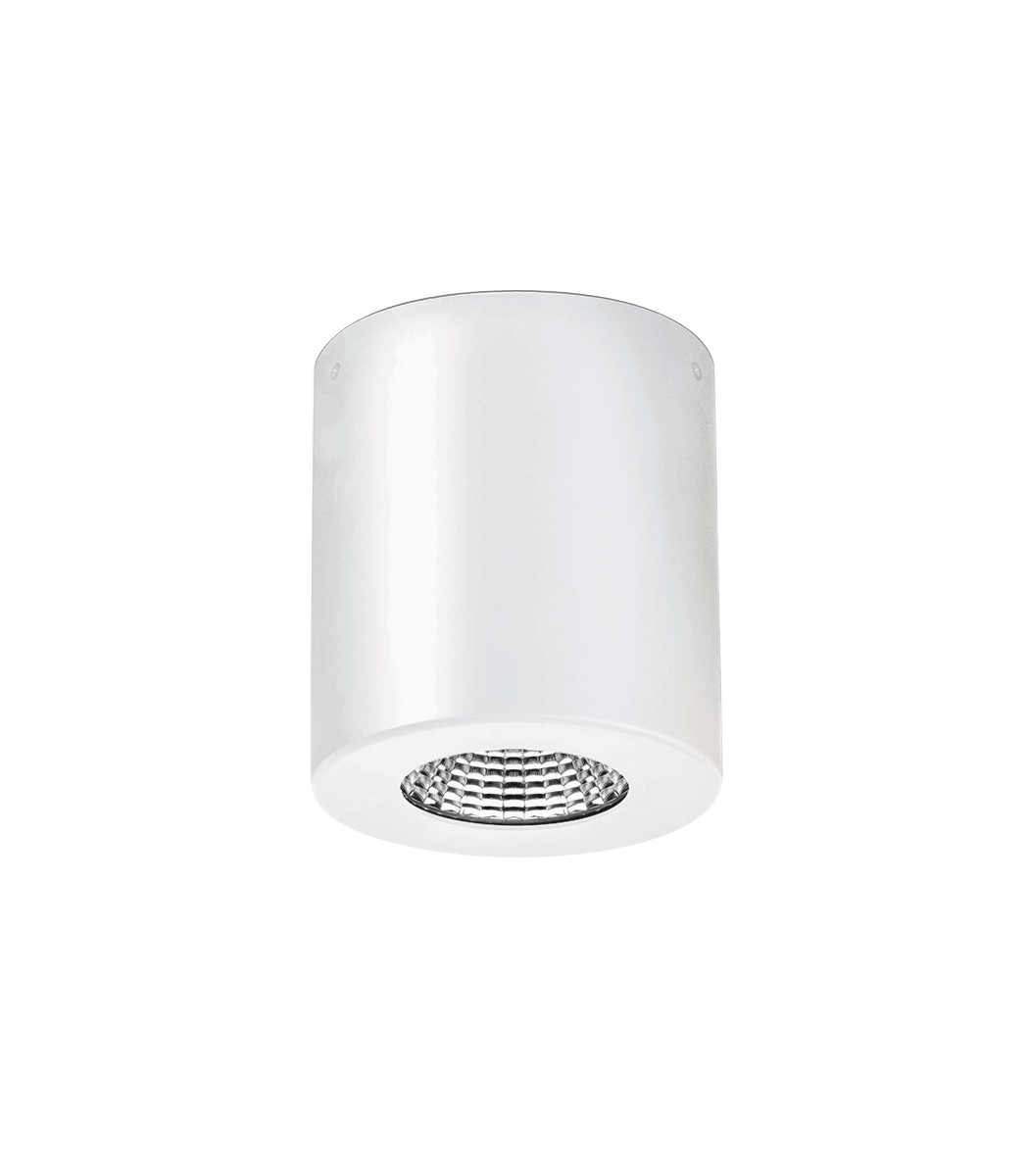

  • Arlo
    H81

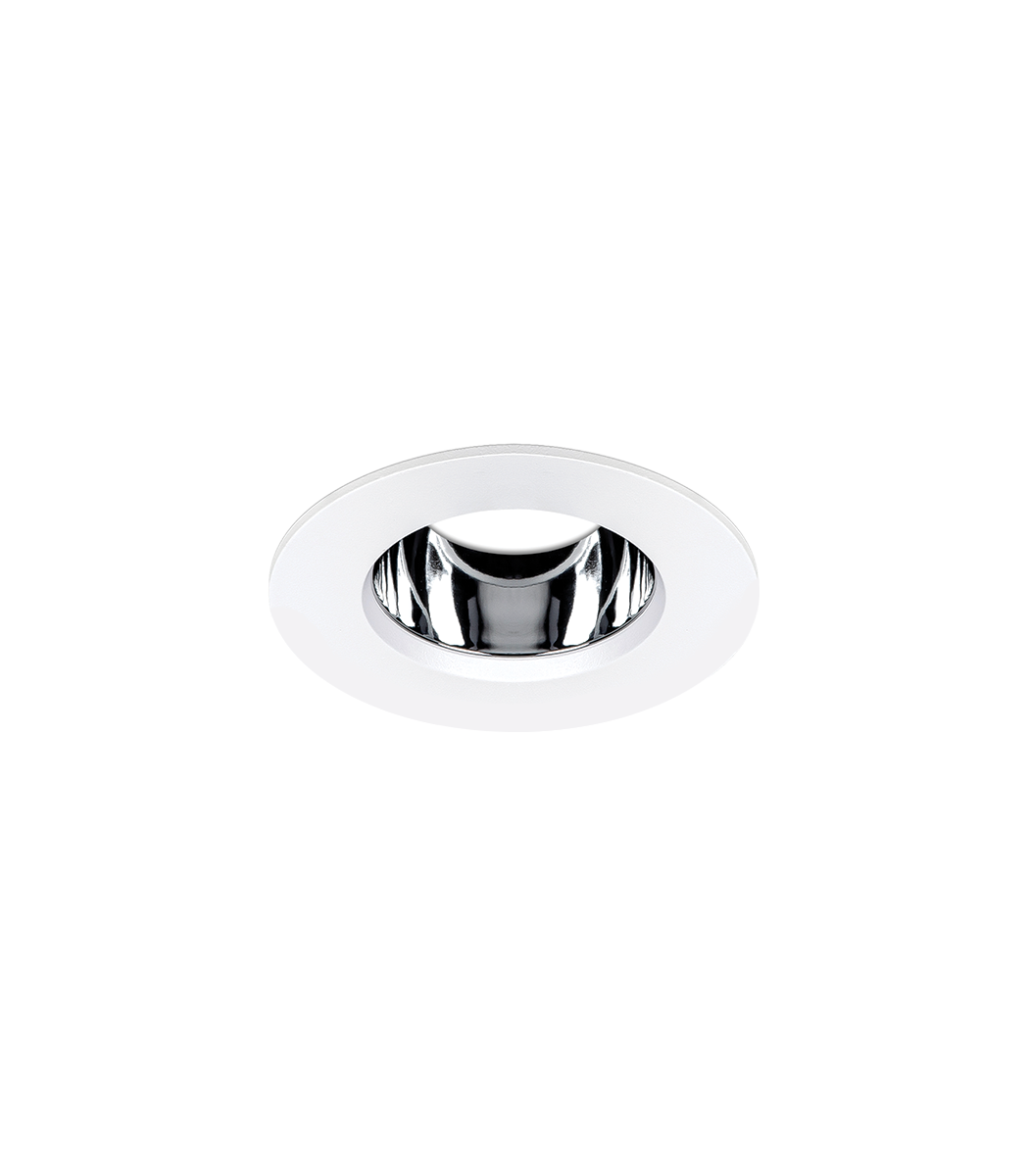

  • Arlo
