Effie TL-AY

Trimless Architectural Asymmetric LED Downlight

Product Overview

✔ Trimless Low glare architectural lit effect, ideal for wall wash applications

✔ Plaster-in body for minimal visual impact

✔ Matt black asymmetric darklight baffle available, developed to minimise glar

✔ Fitted with an integral IP44 protective lens as standard

✔ Precision moulded polycarbonate reflector with medium beam distribution

✔ Deep installed Tier 1 Chip-on-board LED module

✔ Short circuit, overload and temperature protection

✔ Symmetric, square and trimmed versions also available

✔ Suitable for Hospitality, Commercial, Residential

Material
  • Body: Die Cast Aluminium
  • Baffle: Die Cast Aluminium
Sizes
  • 85 (Ø) x 105 (D) mm
    Cutout: 81 mm, Weight: 0.3kg

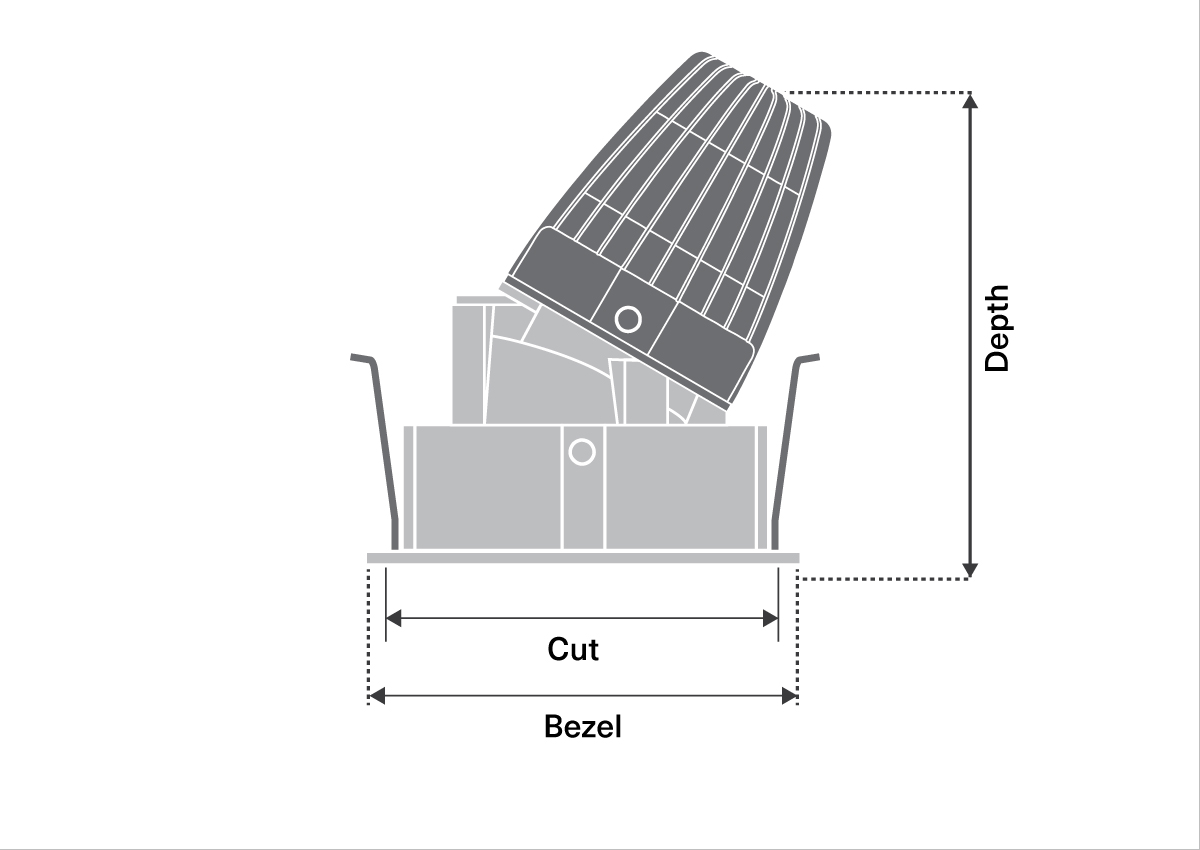

Technical Drawing
  • Source Info Tier 1 LED components (Tridonic, Philips, Osram)
  • Lumens (delivered) 537Lm, 695Lm
  • Circuit Watts 7cW, 8cW
  • Efficacy up to 86Lm/cW
  • MacAdams 3 SDCM
  • Colour Temperature 2700K / 3000K / 4000K
  • Colour Rendering CRI80 / CRI90

Options.

Baffle

  • Darklight Baffle
  • Softlight Baffle
  • Gold

    To special order

Beam Angle

  • 20° Beam Angle
  • 40° Beam Angle

Additional Information.

Effie is an architectural downlight with darklight, softlight or gold inside baffle. The Effie range of low glare, designer downlights are perfect for providing professional high quality, high CRI LED downlights to projects requiring hotel lighting, high end interior and commercial lighting. Effie is available as a trimless LED downlight with softlight or darklight inside baffle.
