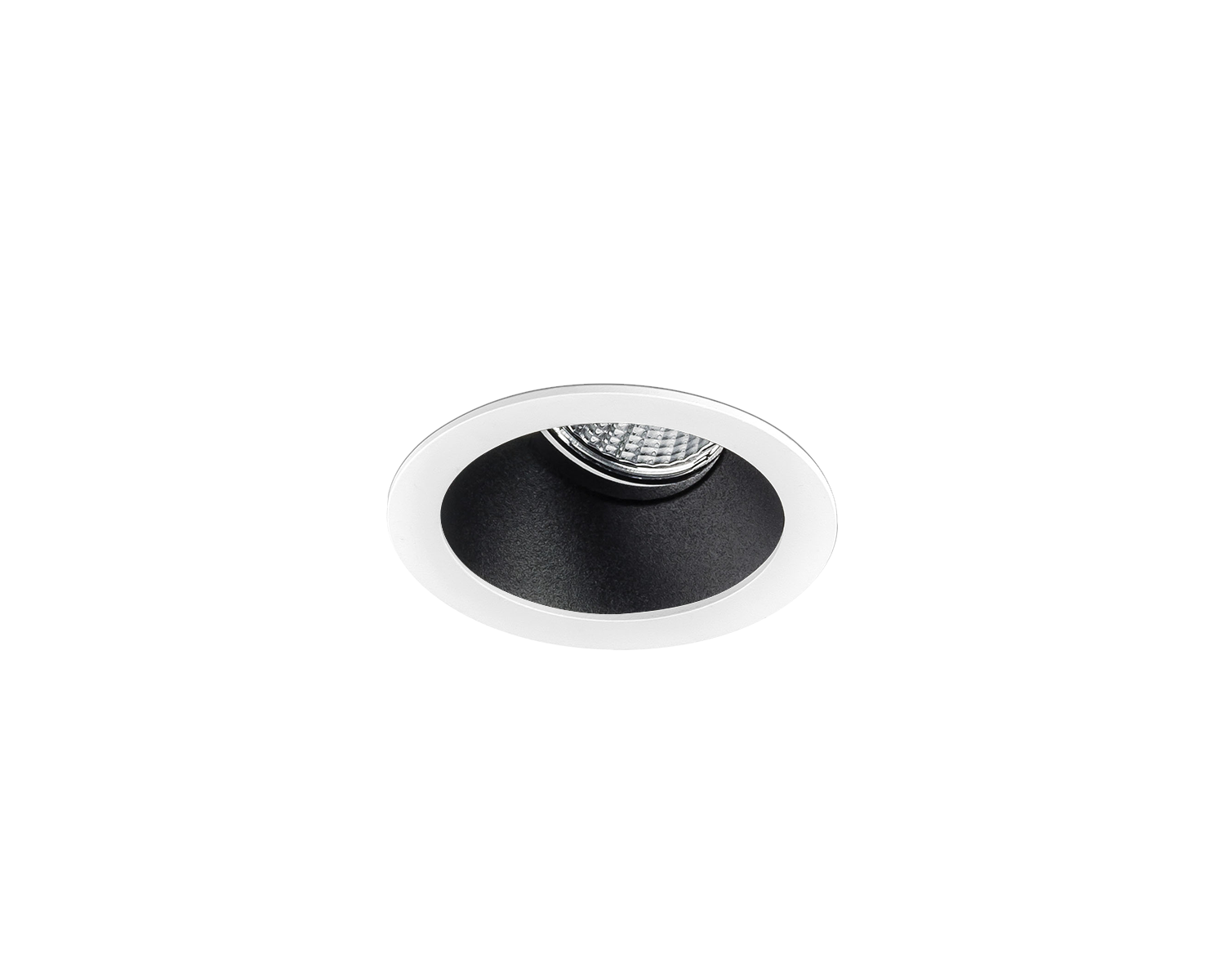

Effie Asymmetric

Architectural Asymmetric LED Downlight

Product Overview

✔ Low glare architectural lit effect, ideal for wall wash applications

✔ Discreet minimal bezel, from diecast aluminium

✔ Matt black asymmetric darklight baffle available, developed to minimise glare

✔ Fitted with an integral IP44 protective lens as standard

✔ Precision moulded polycarbonate reflector with medium beam distribution

✔ Deep installed Tier 1 Chip-on-board LED module

✔ Excellent thermally optimised 24 super-fin die-cast heatsink

✔ Short circuit, overload and temperature protection

✔ Symmetric, trimless and square versions also available

✔ Suitable for Hospitality, Commercial, Residential

Finishes / Material
  • White (Signal) RAL 9003
  • Black (Matt) RAL 9005
  • Custom
  • Body: Die Cast Aluminium
  • Baffle: Die Cast Aluminium
Sizes
  • 85 (Ø) x 105 (D) mm
    Cutout: 81 mm, Weight: 0.3kg

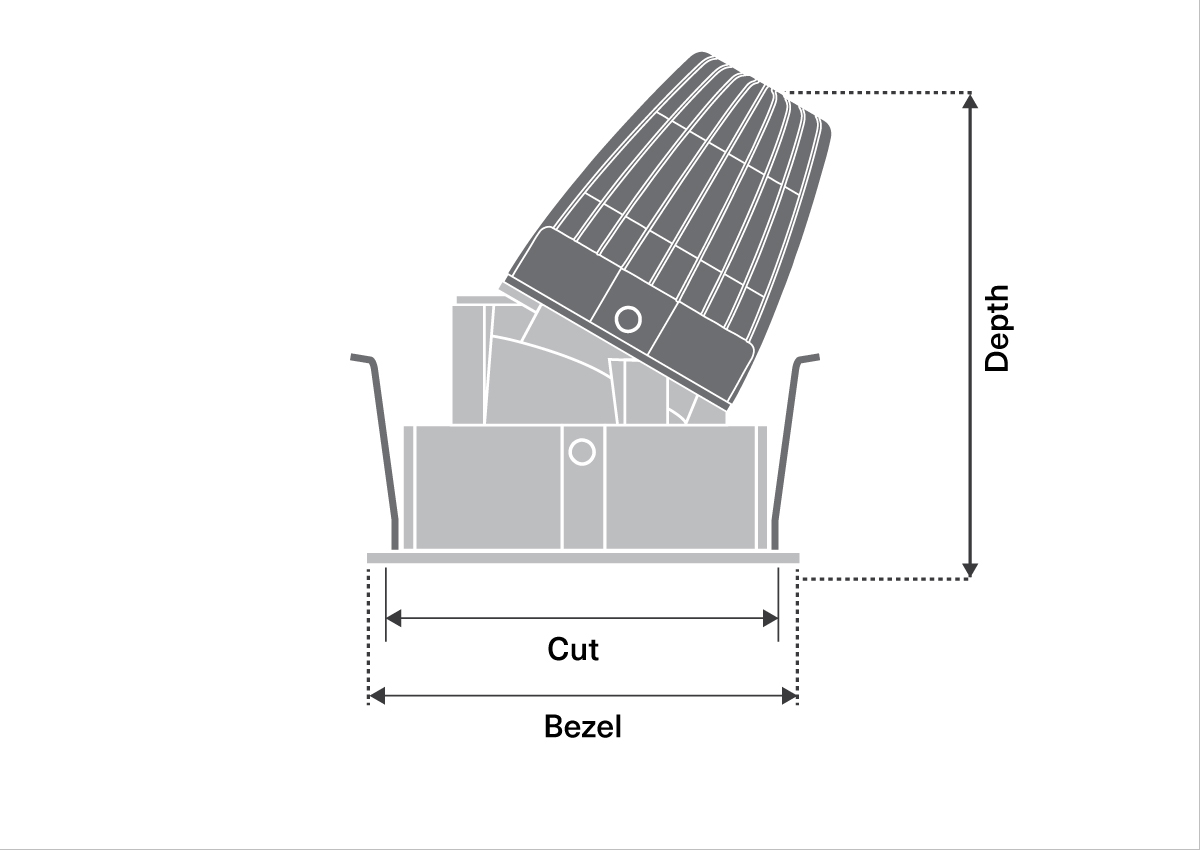

Technical Drawing
  • Source Info Tier 1 LED components (Tridonic, Philips, Osram)
  • Lumens (delivered) 537Lm, 695Lm
  • Circuit Watts 7cW, 8cW
  • Efficacy up to 86Lm/cW
  • MacAdams 3 SDCM
  • Colour Temperature 2700K / 3000K / 4000K
  • Colour Rendering CRI80 / CRI90

Options.

Baffle (optional)

*Please Note: Supplied in Black as standard. Other Baffle colours available on request
  • Softlight Baffle

Beam Angle

  • 20° Beam Angle
  • 40° Beam Angle

Additional Information.

Effie is an architectural downlight with darklight, softlight or gold inside baffle. The Effie range of low glare, designer downlights are perfect for providing professional high quality, high CRI LED downlights to projects requiring hotel lighting, high end interior and commercial lighting. Effie is available as a trimless LED downlight with softlight or darklight inside baffle.

Need Assistance? If you need help finding the perfect light for your project we can help. From product selection, price enquiry & technical support, we’ll be happy to assist. Please make contact via our contact page.
