Xander

Emergency exterior wall mounted safety luminaire with weather-proof housing

Product Overview

✔ Weather-proof housing made of aluminium die-casting with a pane of safety glass, sealed with silicone

✔ Two high-performance LEDs and cast acrylic optics for escape route illumination

✔ Includes an IP65 membrane pressure compensation valve

✔ In compliance with DIN EN 60598-1/2-22 and DIN EN 1838

✔ Optional heating case with battery (4,8V 4,2Ah) to use in environments with lowest permissible temperature of -20°C

✔ Suitable for Education, Hospitality, Office, Exterior, Commercial, Leisure

Finishes / Material
  • White (Traffic) RAL 9016
  • Grey (Graphite) RAL 7024
  • Custom
    To special order
  • Body: Die Cast Aluminium
  • Cover: Toughened Glass
Sizes
  • 190 (W) x 190 (H) x 115 (D) mm

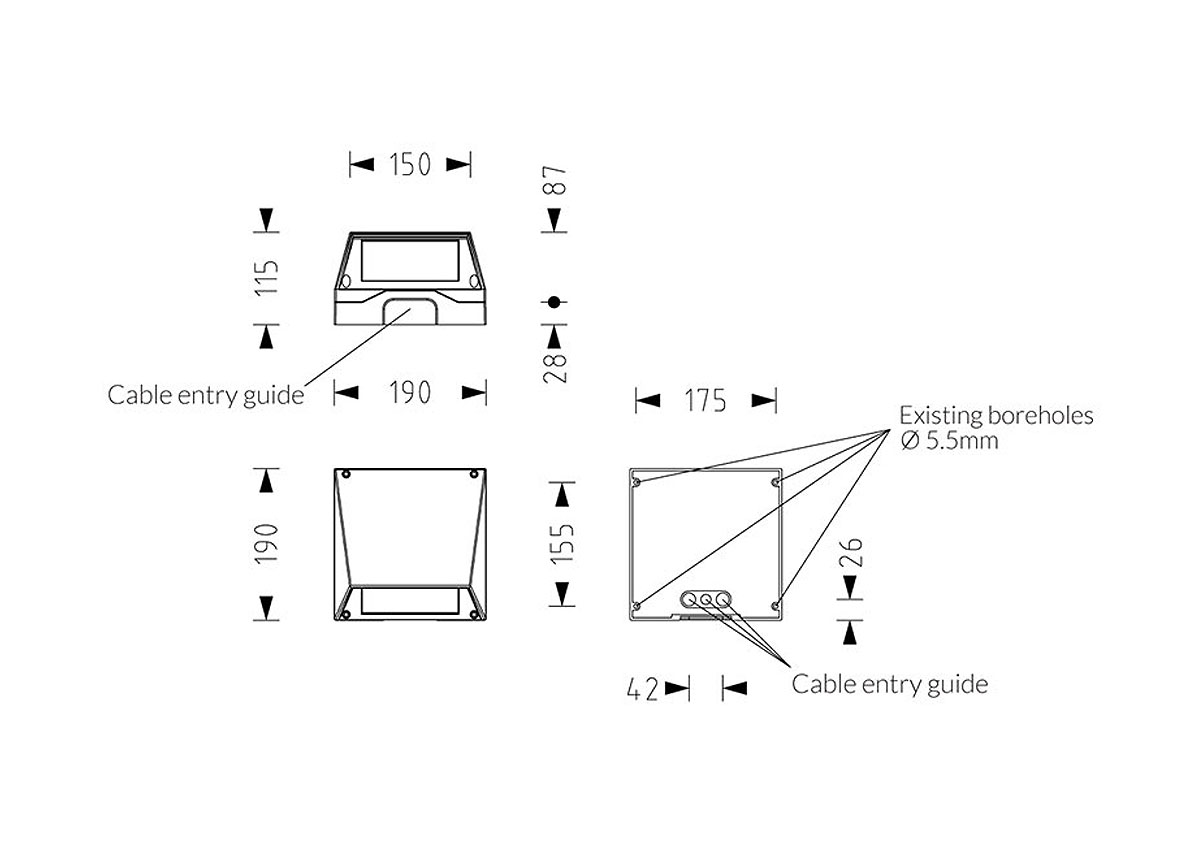

Technical Drawing
  • Source Info 2 x 3W LED / 4x3W LED
  • Colour Temperature 6500K

Options.

Brigthness

  • 3W

    3.3W, 398Lm, 550mA

  • 6W

    6.6W, 451Lm, 550mA

Optic

  • Open Area Distribution
  • Escape Route Distribution

Emergency Type

  • Maintained / Non-Maintained (Self Contained)
  • Self -Test (Self Contained)
  • DALI (Self Contained)

Additional Information.
