Arlo ELV

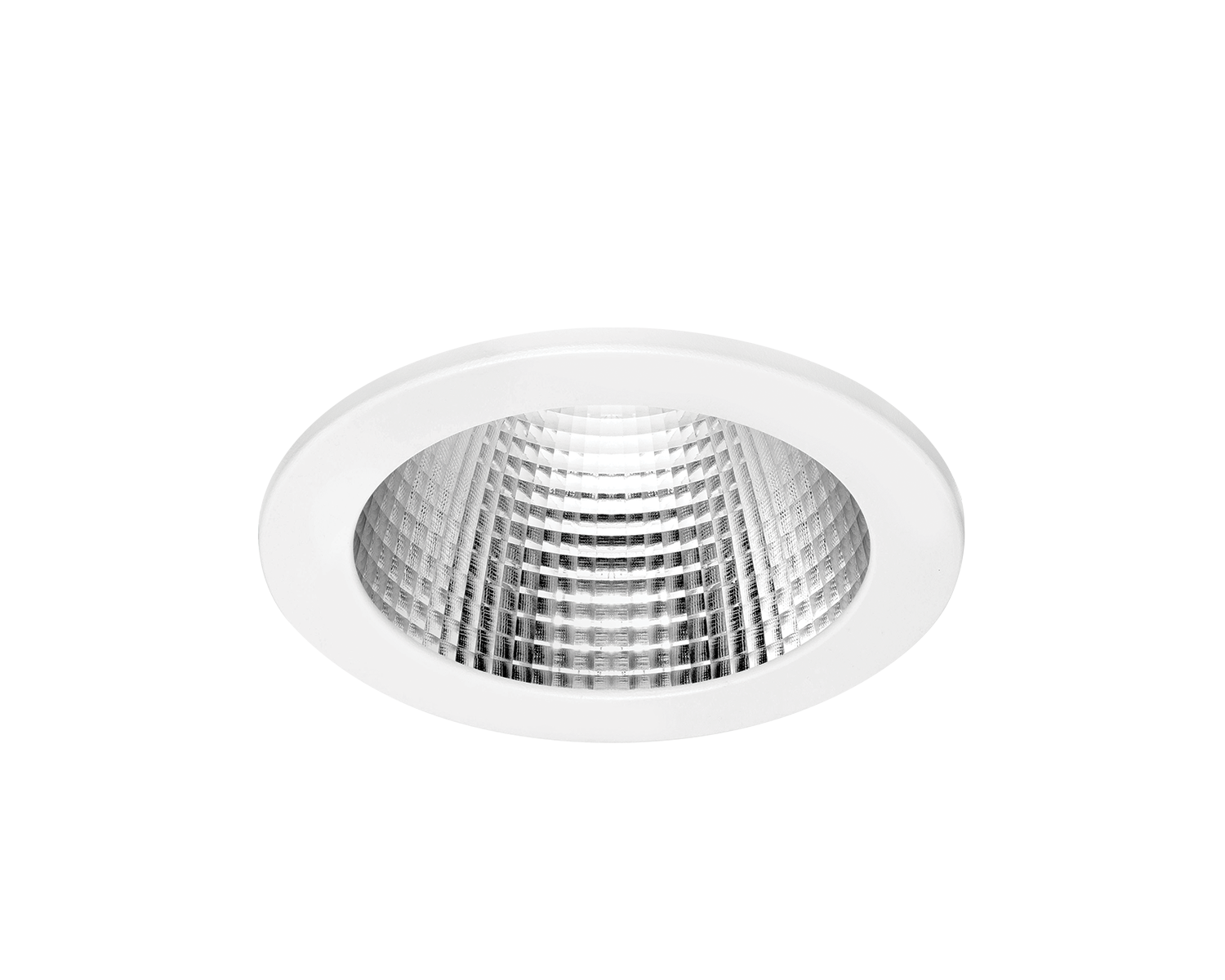

High performance professional LED downlight

Product Overview

✔ High performance LED downlight with 55° multi-faceted reflector as standard

✔ Die-cast twist and lock bezel with interchangeable accessories

✔ IP20, IP54 and IP65

✔ Wireless options

✔ 98% Recyclable

✔ CIBSE TM66 Assessed

✔ Suitable for Education, Healthcare, Hospitality, Office, Retail, Commercial

Finishes / Material
  • White (Cream) RAL 9010
  • White (Traffic) RAL 9016
  • Black (Matt) RAL 9005
  • Silver (White Aluminium) RAL 9006
  • Custom
  • Body: Die Cast Aluminium

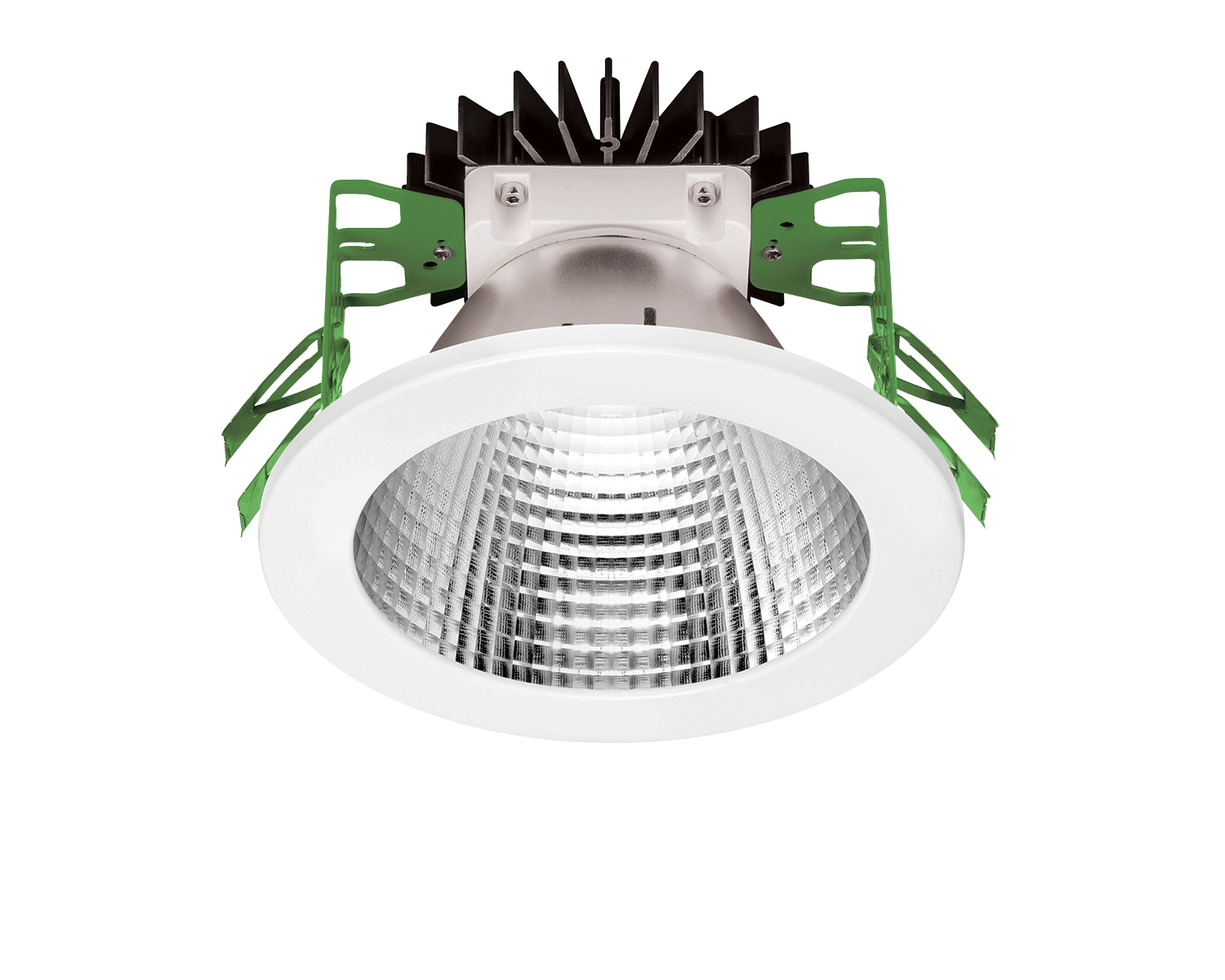

  • Heat Sink: Die Cast Aluminium

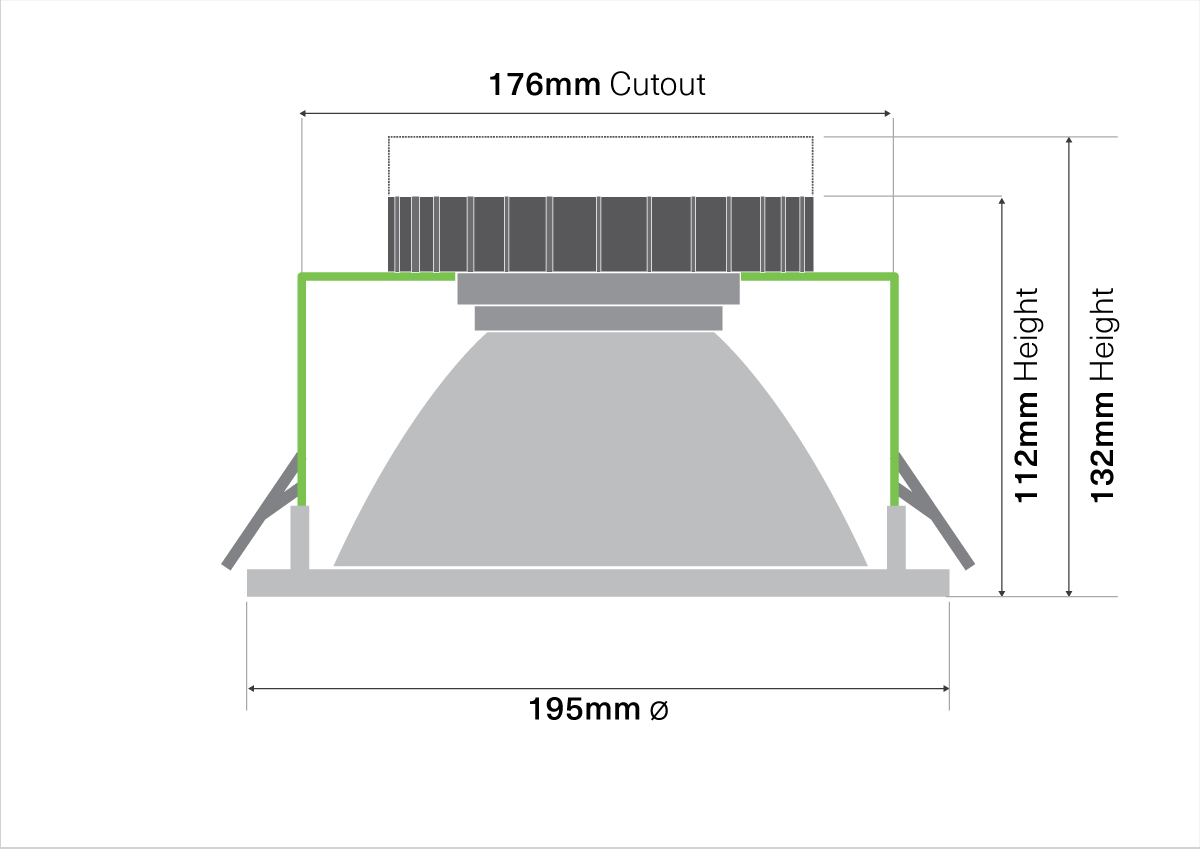

Sizes
  • 195 (Ø) x 103 (D) mm
    Cutout: 176 mm, Weight: 2.0kg
Technical Drawing
  • Source Info Tier 1 LED components (Tridonic)
  • Lumens (delivered) 1168Lm - 10300Lm
  • Circuit Watts 9cW - 95cW
  • Efficacy up to 133Lm/cW
  • MacAdams 3 SDCM
  • Colour Temperature 3000K / 4000K
  • Colour Rendering CRI80 / CRI90

Options.

Reflector

*Please Note: Comes in 55° deg beam Diamond Facet Reflector as standard
  • Diamond Facet Reflector

    55º Beam

  • Etched Reflector

    65º Beam

Options (optional)

*Please Note: Deco Ring attachments are not compatible with IP65 Bezel option
  • Clear Poly-carbonate Cover

    IP54 as standard

  • Clear Glass Cover

    IP54 as standard

  • Centre Etched Flush Glass Cover
  • Acrylic Halo (Frosted)
  • Deco Ring (Black)

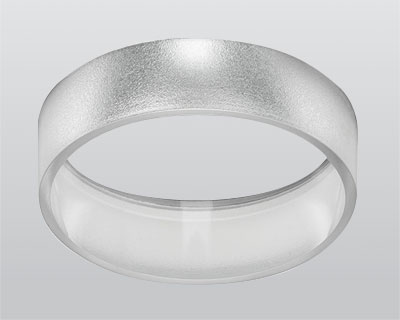

  • Deco Ring (Frosted)

Protective (optional)

*Please Note: Deco Ring attachments are not compatible with IP65 Bezel option

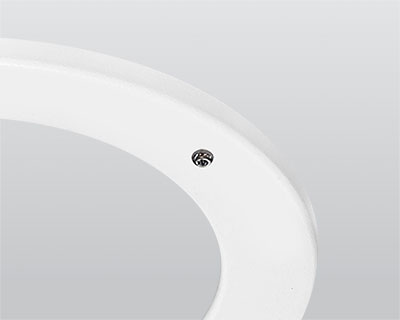

  • Anti-Tamper Bezel
  • IP65

    Enhanced IP

Additional Information.

Need Assistance? If you need help finding the perfect light for your project we can help. From product selection, price enquiry & technical support, we’ll be happy to assist. Please make contact via our contact page.

You May Also Like...

  • Arlo
    SV8

  • Arlo

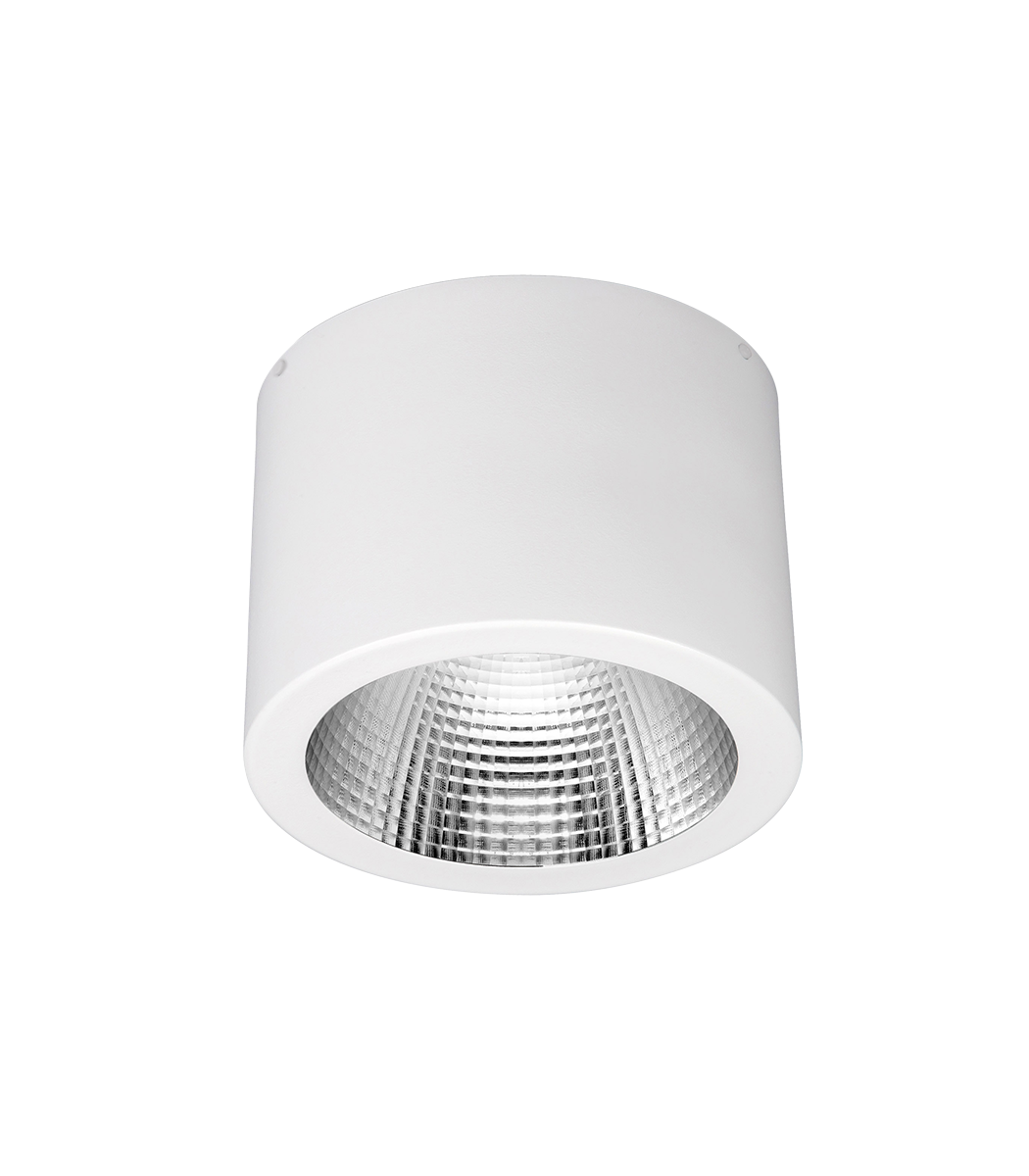

    ET4
