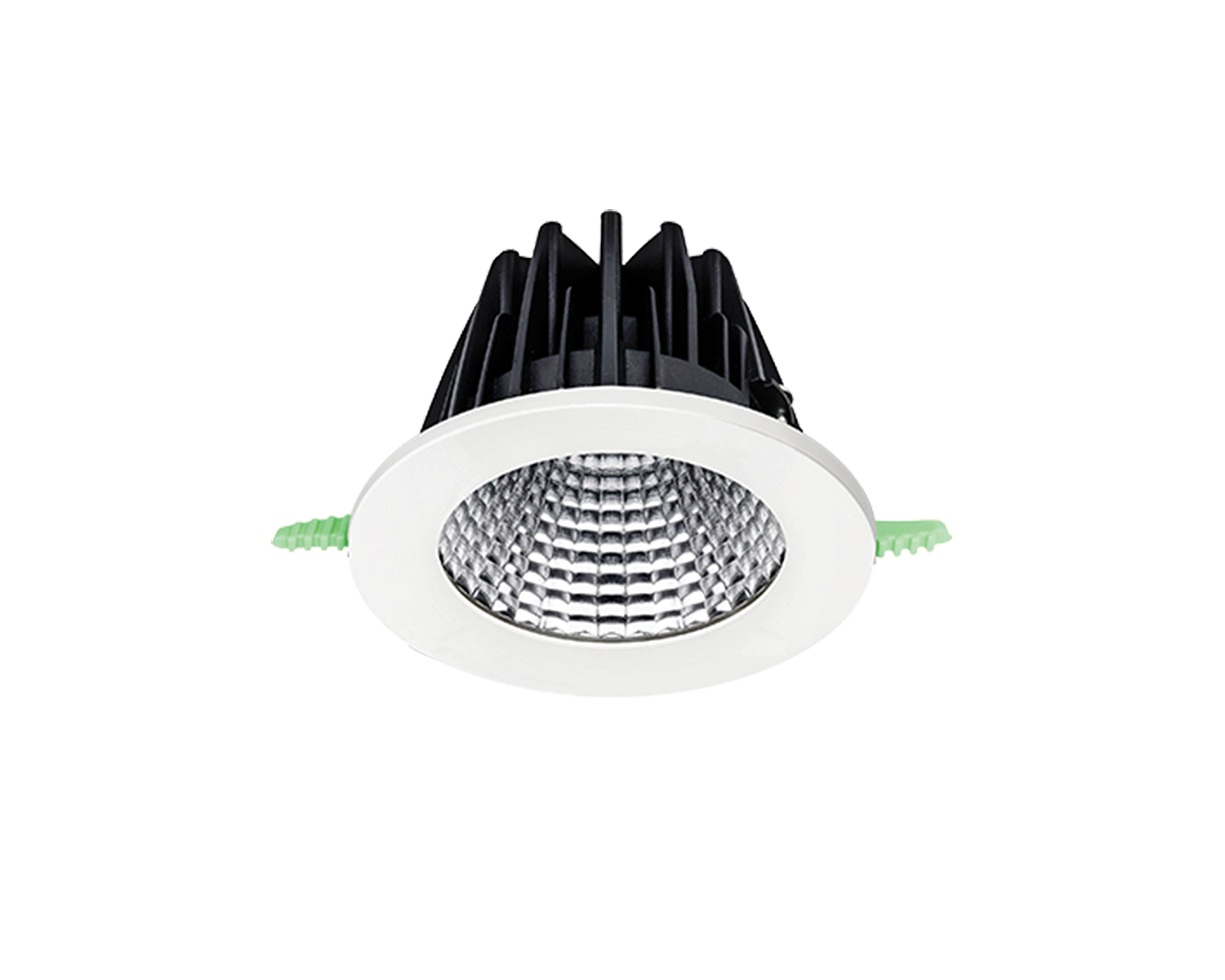

Professional LED downlight
Arlo SV8
Product Overview
✔ Shallow height LED downlight for CFL replacement
✔ Wide range of optics and reflectors
✔ PMMA moulded opal diffuser for broad lateral light distribution in corridors and core areas
✔ Dimming and Emergency options
✔ Suitable for Education, Healthcare, Hospitality, Office, Retail, Commercial
Finishes / Material
-
White (Traffic) RAL 9016 -
White (Cream) RAL 9010
-
Black (Matt) RAL 9005
-
Aluminium (Brushed)
-
Chrome (Polished)
-
Custom
-
Bezel: Aluminium
-
Heat Sink: Die Cast Aluminium
Sizes
-

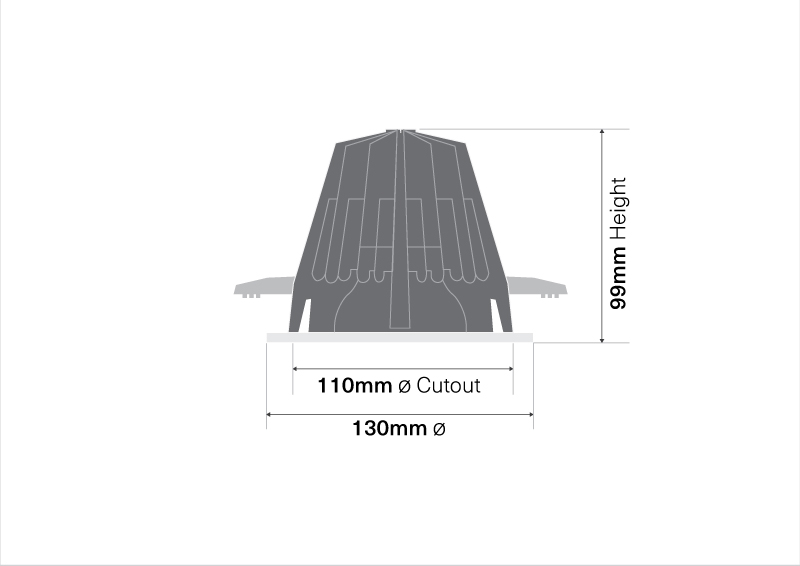

130 (Ø) x 99 (H) mmCutout: 110 mm, Weight: 0.5kg
- Source Info Philips Premium High CRI
- Lumens (delivered) 1050Lm - 4550Lm
- Circuit Watts 8cW - 40cW
- Efficacy up to 132Lm/cW
- MacAdams 3 SDCM
- Colour Temperature 3000K / 4000K / Tuneable White (2500K - 7000K)
- Colour Rendering CRI80 / CRI90
Options.
Reflector
-
25° Beam Angle
Diamond Facet Reflector
-
40° Beam Angle
Diamond Facet Reflector
-
60° Beam Angle
Diamond Facet Reflector
-
Specular Reflector
40º Beam
-
Satin Etched Reflector
50º Beam
Attachment (optional)
-
Deco Ring (Frosted)
-
Deco Ring (Black)
-
Acrylic Halo (Frosted)
-
Centre Etched Flush Glass Cover
IP54
-
Fully Etched Glass Cover
IP54
-
Clear Glass Cover
IP54
-
Clear Poly-carbonate Cover
IP65, IK10
Anti Tamper (optional)
-
Anti-Tamper Bezel
Additional Information.
The Arlo fitting is a high CRI compact LED downlight which can be configured in a number of options. A popular choice is the matt black downlight.
