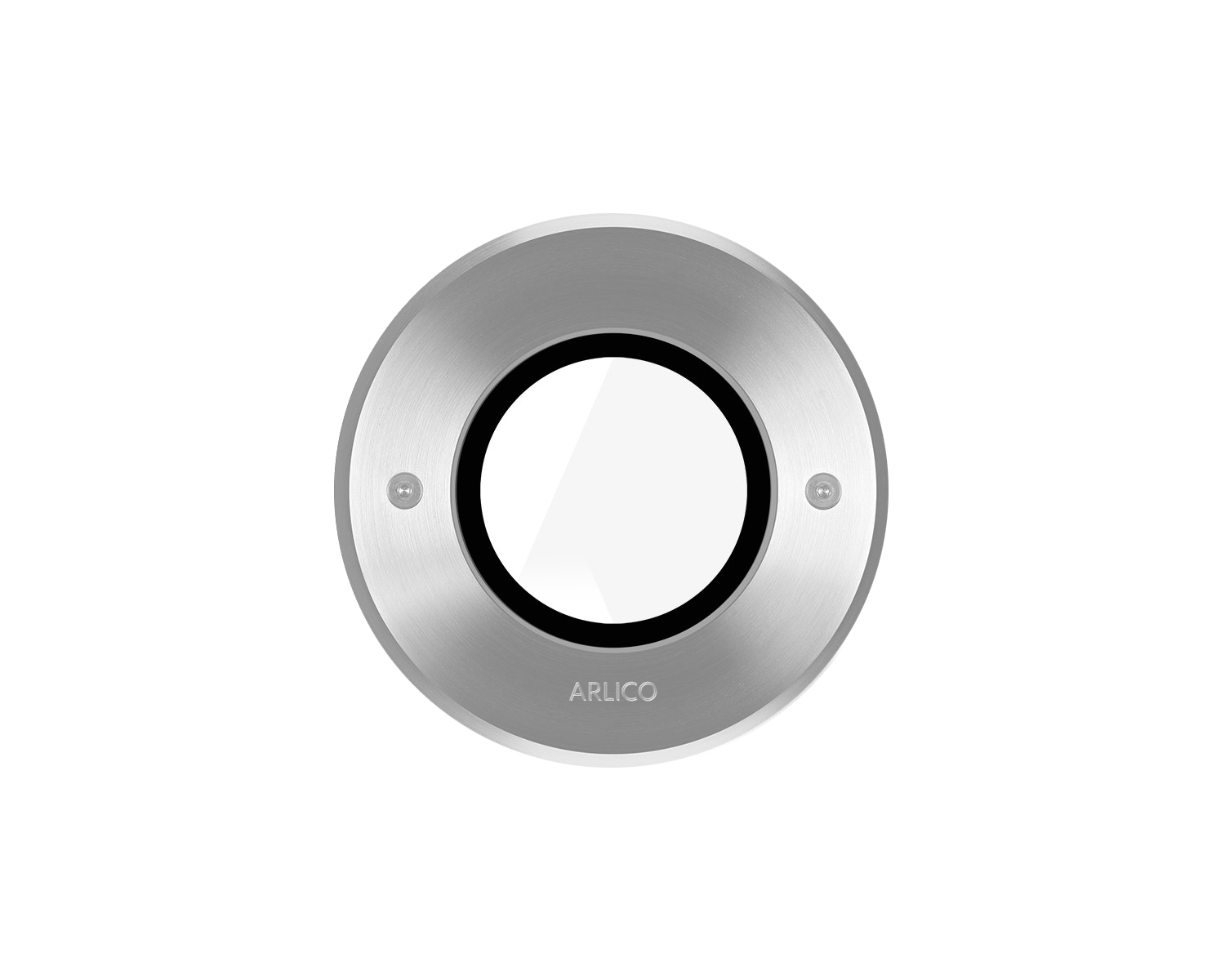

Spiacar RD135

Architectural, high quality in-ground LED up light with shallow recess depth

Product Overview

✔ Symmetrical wide beam (45 ° - 125 °) light distribution

✔ Designed for lighting facades, plants, shrubs and bushes

✔ Shallow recess depth

✔ Wide range of optics and wattages available

✔ Resistant to atomospheric agents and UV rays

✔ Can be driven over at low speeds (2500Kg, max 10mph) in areas not permitted for traffic

✔ Not suitable for installation in swimming pools or fountains

✔ Suitable for Residential, Wall Washing, Exterior Facades, Parks & Gardens, Gallery/Museum, Monuments & statues, Walkways, Driveways

Finishes / Material
  • Stainless Steel
  • Bronze
  • Body: Die Cast Aluminium
    EN AB 44100
  • Diffuser: Tempered glass
    Ultra transparent tempered sodium calcium glass 15mm

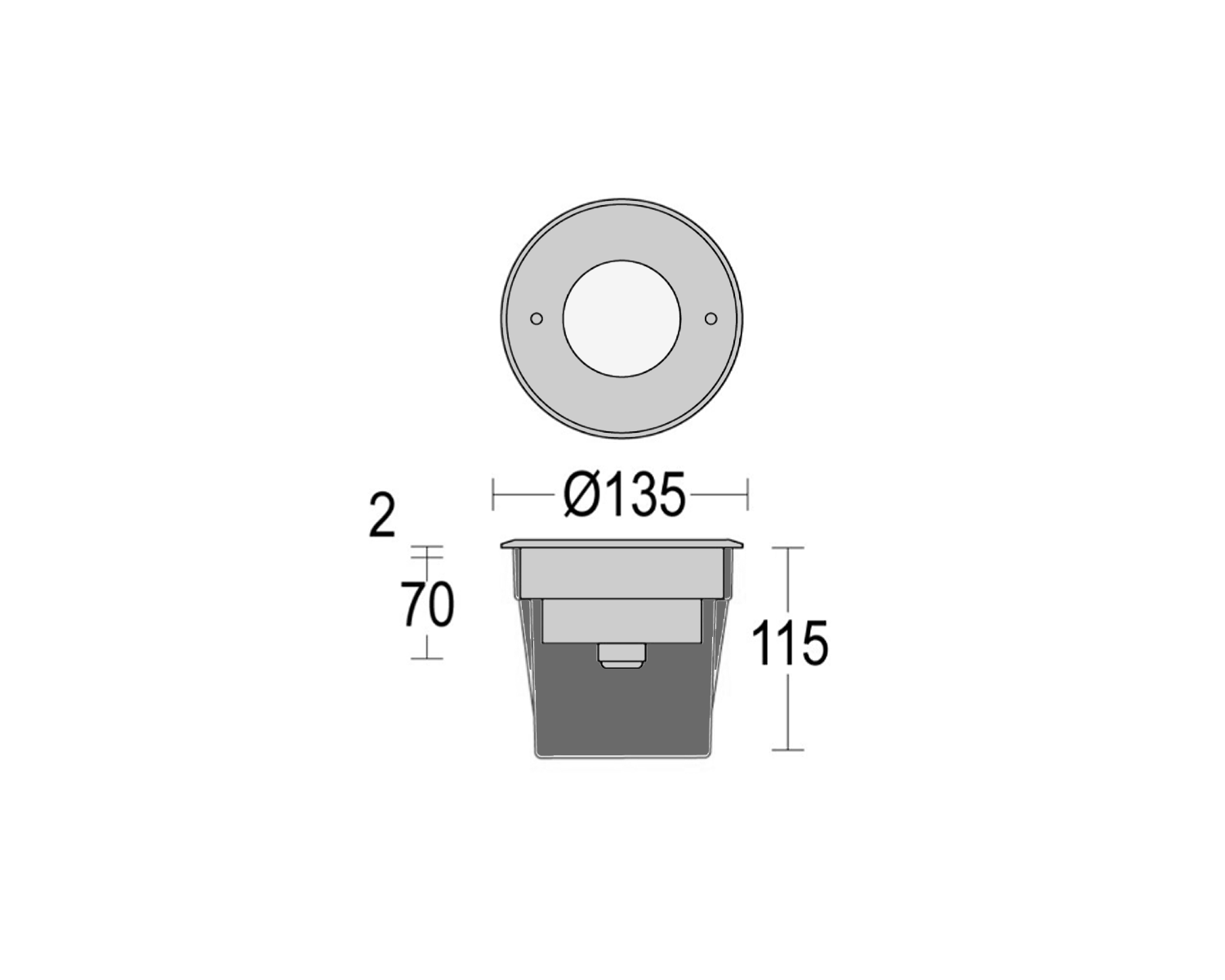

Sizes
  • 135 (Ø) x 115 (D) mm
  • Source Info Tier 1 LED
  • Lumens (delivered) 127Lm, 145Lm
  • Circuit Watts 8cW, 10cW
  • Efficacy up to 18Lm/cW
  • Colour Temperature 3000K / 4000K
  • Colour Rendering CRI80

Options.

Housings (optional)

  • Rough-in Housing

    81 x 135

  • Rough-in Housing

    125 x 85

Additions (optional)

  • GH204 - IP68 Fast connector

Additional Information.

Series of recessed lighting fixtures characterized by a shallow recess depth. Available in various sizes, they are designed for lighting facades, plants, shrubs and bushes in general thanks to a wide range of optics and wattages. The body and diffuser closure ring are constructed of high oxidation resistant aluminium alloy which is subjected to nano-bonderite treatment and finished with texturized polyester powder paint, making the product resistant to atmospheric agents and UV rays, guaranteeing maximum protection over the years. Silicone gaskets ensure maximum sealing in all operating and temperature conditions. The ultra transparent tempered sodium calcium glass diffuser ensures maximum light transmittance and is finished with a silkscreen border. The external finishing frame and screws are in stainless steel. As an alternative to the stainless steel frame, the natural bronze frame is also available. The product is equipped with the Ghidini water-lock system which prevents condensation from the power cable due to the alternating on and off cycles. The product is installed with a polypropylene rough-in housing that prevents the contact of the fixture directly with the ground and allows the necessary space for wiring. The product can be driven over at low speeds (max 10 / mph) in areas not permitted for traffic. Not suitable for installation in swimming pools or fountains.
